Model No.: L019360
Brand: BLG
Place Of Origin: China
Status: Used
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Incoterm: FOB,CFR,CIF,FCA
Casting Machine: Cold Chamber
Deck: Double
Raw Material: Aluminum Alloy
Status: Custom Made
NC Machine: FANUC
Surface Finish: Shot Blasting
Type: Heat Exchange System
Cavity Number: 1
Size: φ254.4*52.6
Selling Units: | Piece/Pieces |
Package Type: | carton, PE pallet, PE flow box, steel box, wooden pallet, container |
Picture Example: |

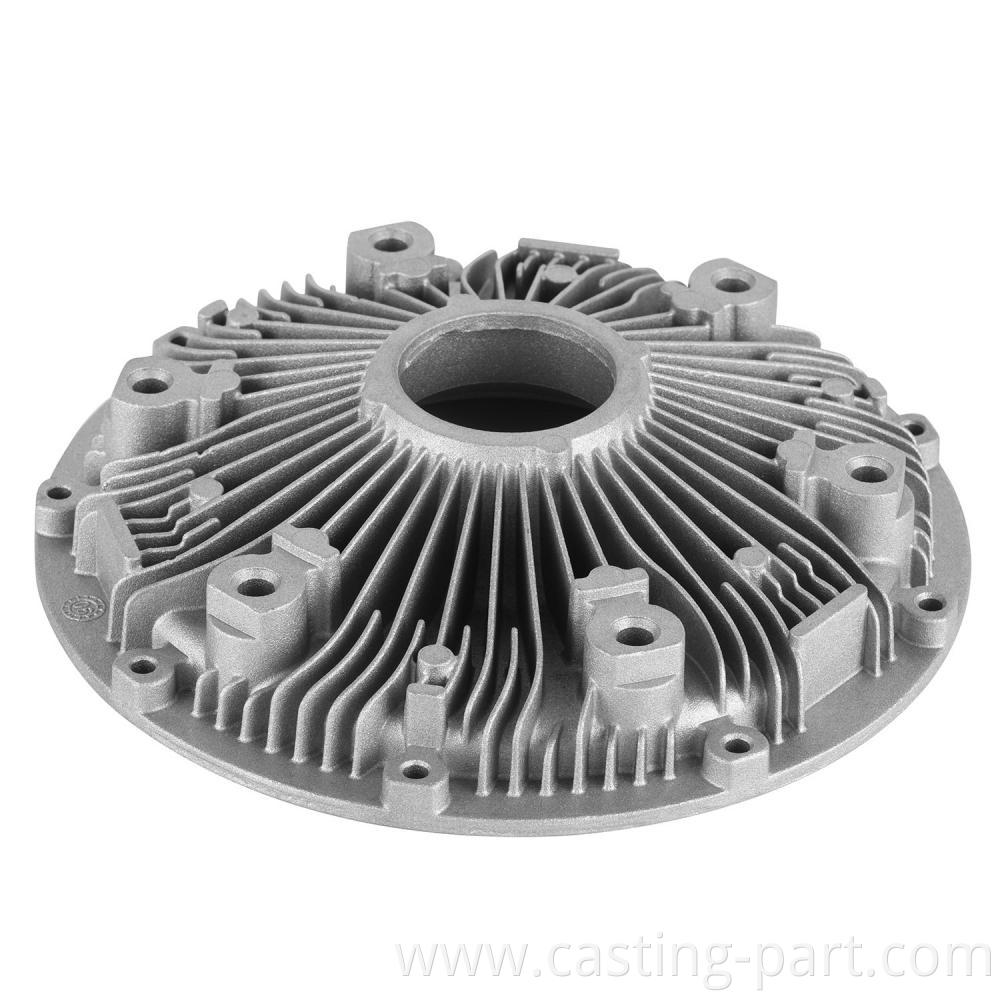

This part is using in Automobile area,the raw material is ADC12, the main function is heat exchanging. The main processes of this Machinery Parts are die casting,Shot Blasting CNC Milling,CNC Turning.
Die casting mold flow design is a crucial step in ensuring the proper and uniform filling of molten metal within the mold cavity during the die casting process. The goal of mold flow design is to minimize issues such as porosity, defects, and stress concentration, while also enhancing production efficiency and part quality. Here are some key considerations when designing the mold flow for die casting:
Cavity Design: The geometry and dimensions of the mold cavity are crucial for metal flow and proper part filling. The cavity design should meet the part's size, geometry requirements, wall thickness, and prevent potential metal flow issues.
Inlet and Venting System: Providing adequate inlet and venting paths within the mold is essential to ensure smooth metal flow, as well as the evacuation of gases. This helps reduce the formation of pores and defects.
Casting Temperature and Pressure: The casting temperature and pressure directly influence the fluidity and filling behavior of the molten metal. The mold flow design must be adjusted according to the characteristics of the specific alloy being used to ensure proper temperature and pressure settings.
Gates and Solidification System: The design of gating systems should facilitate a smooth metal entry into the cavity, and the solidification system should promote rapid cooling and achieve the desired solidification structure.
Temperature Control: Proper temperature control of the mold is essential for maintaining metal fluidity and part quality. The mold flow design needs to ensure the incorporation of an effective temperature control system.
Cavity Filling Analysis: Using mold flow analysis software to simulate cavity filling helps assess metal flow behavior, fill pattern, and potential issues. This aids in optimizing mold design and process parameters.
Material Flow Direction: Consideration of metal flow direction and potential turbulence, cooling effects, etc., to prevent uneven filling and stress concentration.
Cooling System: The cooling system design is critical for rapid and uniform part cooling, controlling cooling rates, and reducing stress and defects.
Mold Material and Coatings: The use of suitable mold materials and coatings can reduce thermal shocks and wear, enhancing mold longevity and stability.
Experimentation and Validation: Prior to mold manufacturing, conducting sample casting and validation helps evaluate the effectiveness of the mold flow design.
In summary, die casting mold flow design ensures smooth and uniform metal filling within the mold cavity to produce high-quality parts. By considering these factors comprehensively, mold designs can be optimized to improve production efficiency and part quality.
Packaging: carton, PE pallet, PE flow box, steel box, wooden pallet, container
Productivity: 100000/year
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 100000/year
Certificate: IATF16949,ISO14001,ISO45001
HS Code: 7616991090
Port: Ningbo,Shanghai
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF
